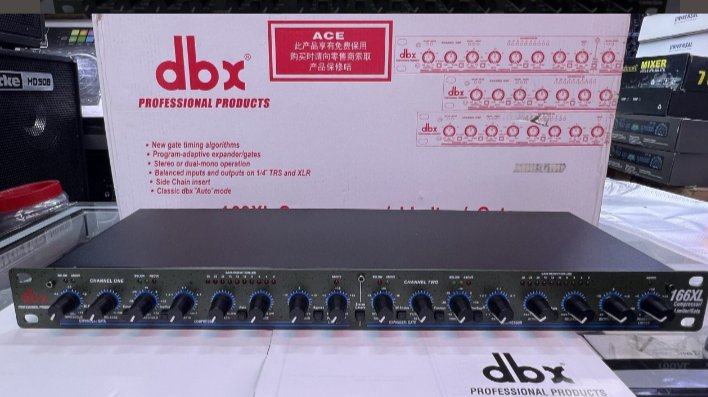

Dbx 166XL Dual-Channel Compressor / Limiter / Gate

The dbx 166XL is a professional-grade, dual-channel dynamics processor designed to provide precise control over audio signals in live sound reinforcement, broadcasting, and studio recording environments. It combines three essential dynamic processing tools into a single rack unit: a compressor, an expander/gate, and a PeakStop limiter.
The unit utilizes advanced dbx patented technology, including OverEasy® and Hard Knee compression algorithms, allowing for smooth, transparent leveling or aggressive peak control. Its program-adaptive expander/gate features new timing algorithms to ensure smooth release characteristics without clipping or chattering. Operating in either linkable stereo or dual-mono modes, the 166XL delivers clean, distortion-free audio management with an intuitive control layout and comprehensive LED metering.
Key Specifications
• Channels: 2 independent channels (Linkable for true stereo operation)
• Dynamic Processing types: Compression, Expansion/Gating, and Peak Limiting
• Compression Threshold Range: -40 dBu to +20 dBu
• Compression Ratio: 1:1 to Infinity:1
• Attack/Release Modes: Manual or dbx Auto mode (program-dependent)
• Gate Threshold Range: Off to +15 dBu
• Gate Ratio: 1:1 to 4:1
• Limiter Threshold Range: 0 dBu to +20 dBu (PeakStop™ technology)

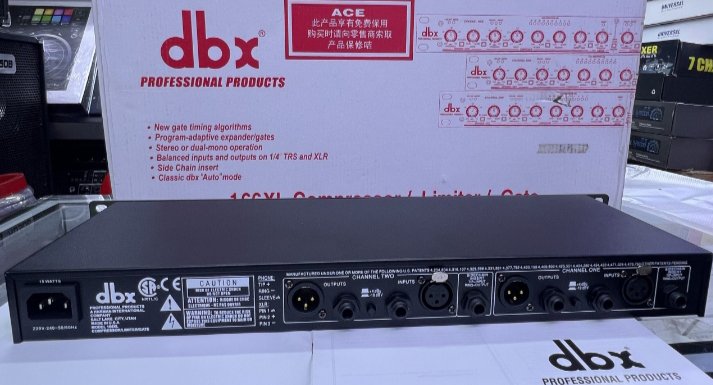

• Inputs: 2 x XLR (Female) and 2 x 1/4″ TRS phone jacks (Balanced/Unbalanced)
• Outputs: 2 x XLR (Male) and 2 x 1/4″ TRS phone jacks (Balanced/Unbalanced)
• Sidechain Insert: 1/4″ TRS phone jack per channel
• Frequency Response: 20 Hz to 20 kHz (+0/-0.5 dB)
• Dynamic Range: > 115 dB
• Rack Space: 1U standard rackmount size
